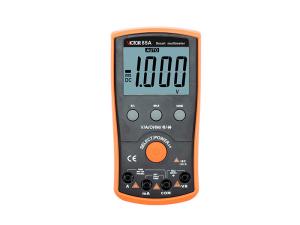

High Precision Intelligent VICTOR Digital Multimeter Anti Burn Ammeter

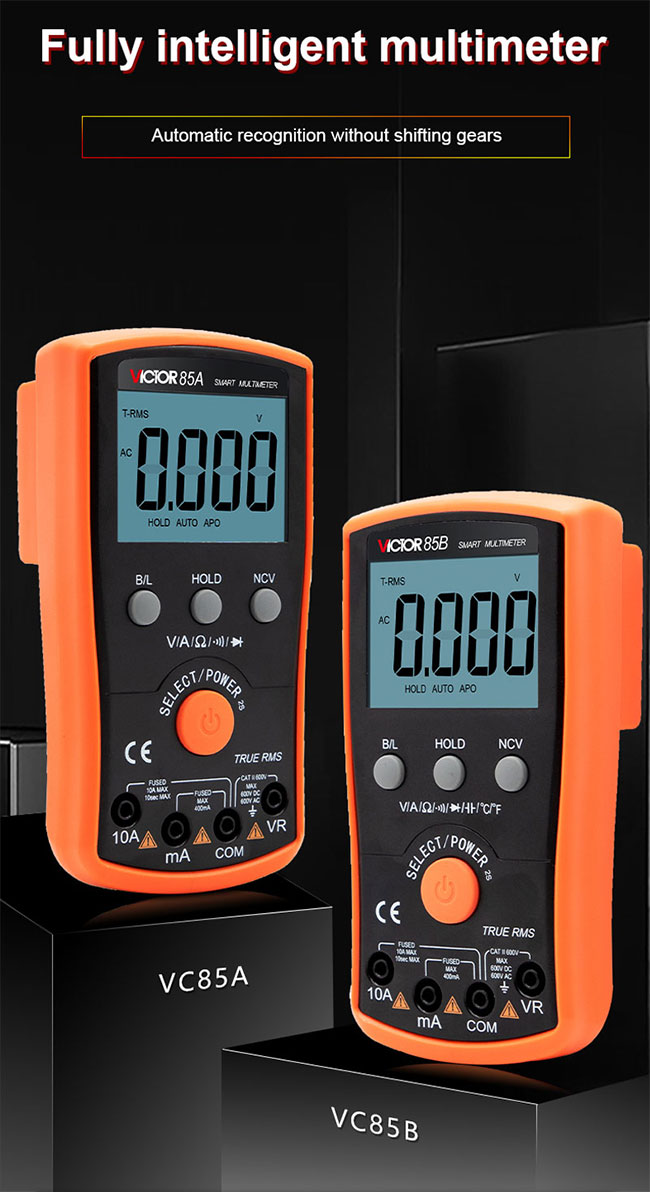

VICTOR 85A Multimeter Digital High Precision Automatic Intelligent Multi-Function Anti-Burn Ammeter Voltage Current Ohm Tester
1. INTRODUCTION
The handheld smart instrument is driven by battery without the range/function knob. It has the function of measuring DCV, ACV, DCA, ACA, Resistance, Diode and Buzzer.
2. GENERAL SPECIFICATIONS
Display: Max. indication 4000
Sampling rate: Approx. 3 times/second
Polarity indication: Auto negative polarity indication
Over range indication: “ OL” displays
Low battery Indication
Operating temperature: (0 ~ 40)℃, humidity<75%RH.
Storage temperature: -10℃~50℃, humidity<80%RH.
Power: 2*1.5V AAA batteries
Dimension: 172mm×85mm ×45mm.
Weight: approx 320g .

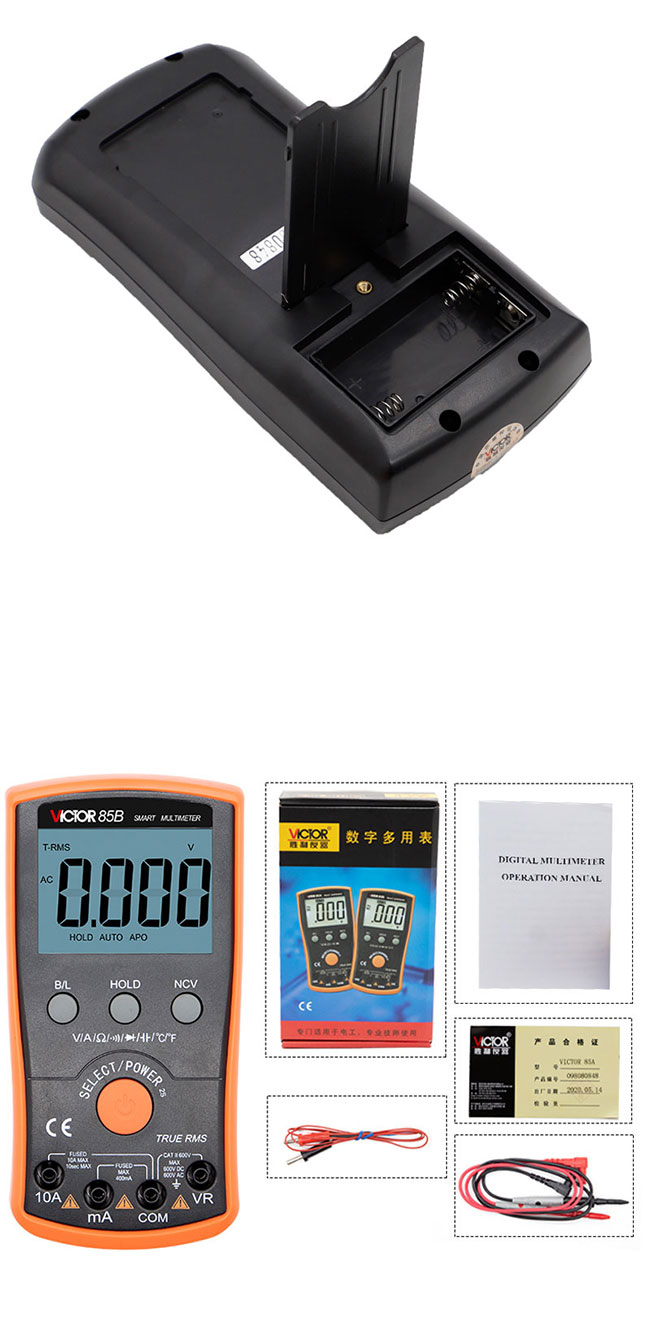

Accessories: ------Operation manual, test leads, batteries
| Technical parameter |
| Modle | 85A | 85 B |
| basic skills | Range | Precision |
| DC voltage | 4V/40V/400V | 4V/40V/400V | 土(0.5%+7) |
| 600V | 600V | 土(1.0%+6) |
| AC voltage | 4V/40V/400V | 4V/40V/400V | 土(0.8%+10) |
| 600V | 600V | 士(1.0%+10) |
| DC current | 40mA | 40mA | 土(0.8%+10) |
| 400mA | 400mA | 士(1.2%+5) |
| 10A | 10A | 士(2.0%+10) |
| AC current | 40mA | 40mA | 土(1.2%+5) |
| 400mA | 400mA | 土(1.8%+5) |
| 10A | 10A | 士(3.0%+10) |
| Resistance | 400Ω/4kQ/40kΩ/400kΩ | 400Ω/4kΩ/40kΩ/400kΩ | 土(1.0%+5) |
| 40MΩ | 40MΩ | 士(1.2%+10) |
| Capacitance | * | 4nF | 土(5.0%+40) |
40nF/400nF/4uF/
40uF/400uF/20mF | 土(5.0%+10) |
| Temperature | * | -20°C~1000°C
-4°F~1832°F | 士(1.0%+5) |
| 士(1.5%+15) |

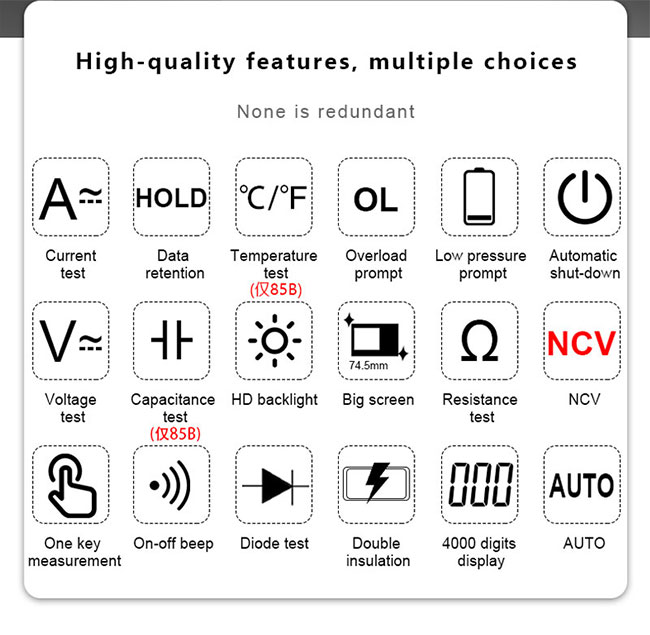

| Features | | | |
| Display | LCD digital display |
| Operation | Full intelligent automatic range |
| Max display | 4000 |
| Diode test | √ |
| HOLD | √ |
| NCV | √ |
| Backlight | √ |
| Overload | OL displayed on LCD |
| Low voltage | √ |
| On-off beep | √ |
| Operating°C | 0~40°C <75%RH |
| Store (°C) | -10~50°C <80%RH |
| Shut-down | √ |
| Unit symbol | √ |
| Resistance | 10MΩ |
| Frequency response | 40~1KHz |
| Power supply | AAA 1.5V*2 |
| Product Size | 172*85*45mm |
| Weight | 320g |
