3999 Counts Digital Clamp Multimeter Auto Range 2000A AC Larger Current Voltage

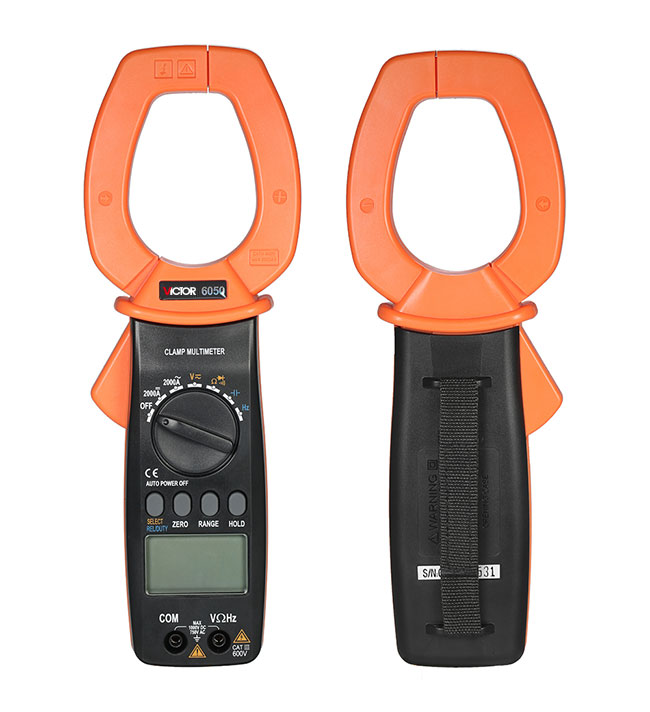

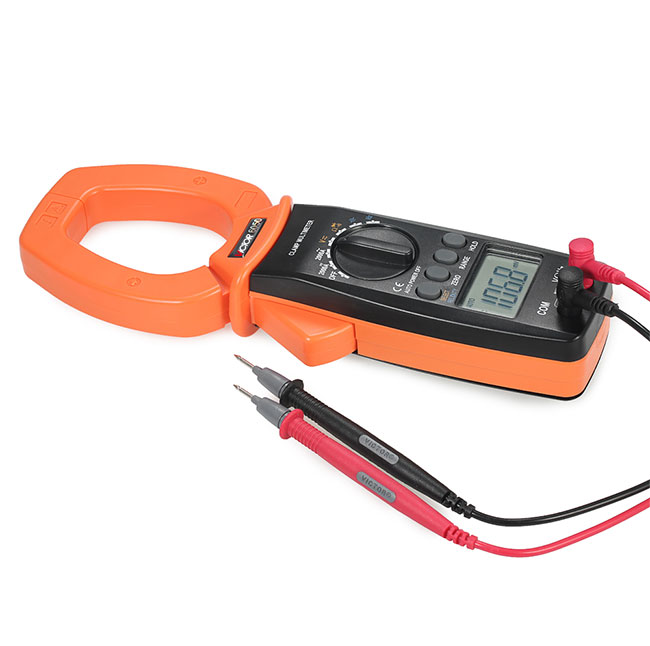

VICTOR 6052 Digital Clamp Multimeter Auto Range 2000A AC larger Current Voltage frequency capacitance Diode tester Clamp Meters
1. General
It is a 3 3/4-bit digital clamp meter of automatic range conversion and a high-reliability digital clamp multimeter with stable performance and driven by battery. It adopts 16mm font height LCD display of clear readings. With the functions of data retention and automatic power-off, it is more convenient to use.
This meter can be used to measure such parameters as DCV, ACV, ACA, resistance, capacity, frequency, diode, continuity, etc. Centered on the dual slope A/D conversion of large-scale integrated circuit, the whole set has the function of automatic range conversion and thus is a meter with excellent performance and a desirable tool for labs, factories, radio fans and homes.
Warning: Before use, please read carefully the information under “Safety Notices”.

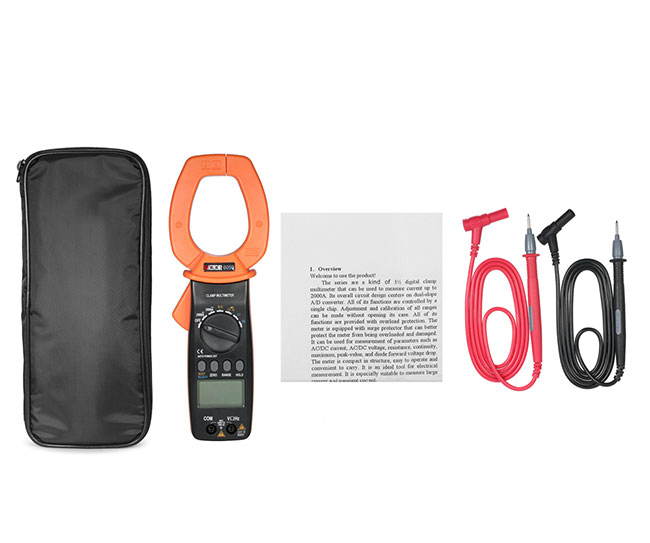

2. Unpacking Check
After unpacking, please carefully check if the following items are missing or damaged. If so, please contact the distributor immediately.
| ■ | Digital clamp multimeter | 1 set |
| ■ | User’s manual | 1 piece |
| ■ | Test leads | 1 set |
| ■ | 1.5V AAA battery | 2 pieces |
3. General Features
1-1. Display mode: LCD display;
1-2. Max. display: 3999(3 3/4)bit auto polar display or unit display;
1-3. Measurement mode: Dual slope A/D conversion;
1-4. Conversion rate: 3 times/s;
1-5. Over-range display: “OL” displayed in the highest
1-6. Low battery display;
1-7. Auto power-off function;
1-8. Max. head opening size: dia. 55mm;
1-9. Max. size of predicted current lead: dia. 50mm;
1-10. Effect of electromagnetic field: If used for devices nearby electromagnetic field, unstable or incorrect readings may be displayed;
1-11. Error caused by test position: When measuring current, please place the source to be tested in the center of the clamp head; otherwise, certain additional error will occur;
1-12. Operating environment: (0~40)℃, RH＜80%;
1-13. Storage environment: -10~50℃, RH＜80%;

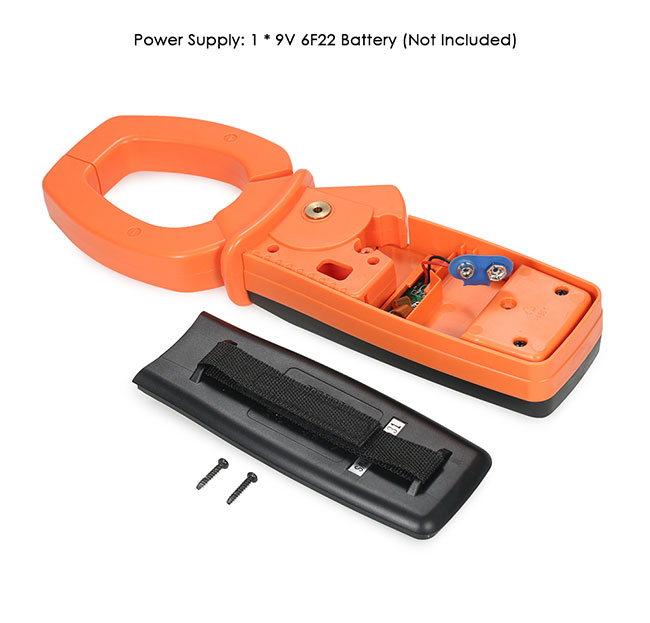

1-14. Power supply: 1.5V battery;

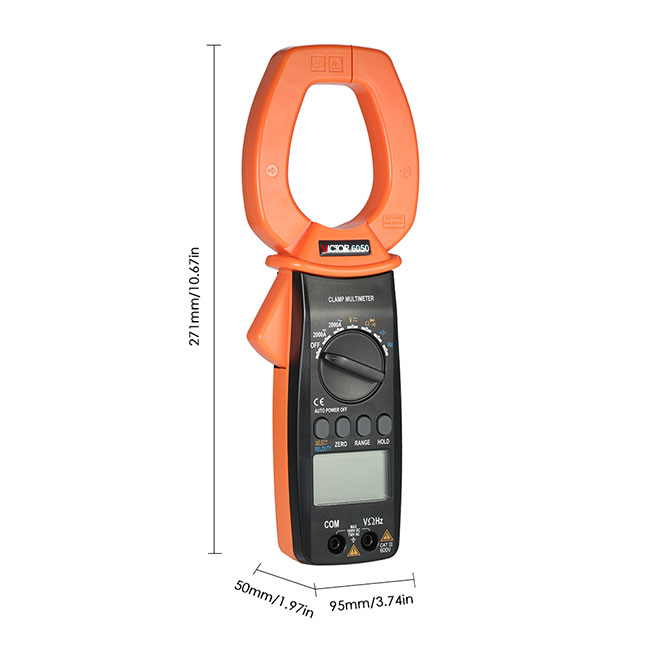

1-15. Volume (dimensions): 275mm×96mm×50mm (L×W×H) ;
1-16. Approx. 476g (battery included).
4. Technical Data
| Basic Function | Range | VICTOR 6052 | VICTOR 6050 |
| DC Voltage | 400mV/4V/40V/400V | | ±(0.5%+4d) |
| 4V/40V/400V | ±(0.5%+4d) | |
| 1000V | ±(1.0%+6d) | |
| AC Voltage | 400mV | ±(1.6%+8d) | ±(1.6%+8d) |
| 4V/40V/400V | ±(0.8%+10d) | ±(0.8%+10d) |
| 750V | ±(1.0%+10d) | ±(1.0%+10d) |
| DC Current | 400A | | ±(2.5%+20d) |
| 2000A | | ±(2.5%+20d) |
| AC Current | 400A | ±(2.5%+20d) | ±(2.5%+20d) |
| 2000A | ±(3%+10d) | ±(3%+10d) |
| Resistance | 400Ω | ±(0.8%+5d) | ±(0.8%+5d) |
| 4kΩ/40kΩ/400kΩ/4MΩ | ±(0.8%+4d) | ±(0.8%+4d) |
| 40MΩ | ±(1.2%+10d) | ±(1.2%+10d) |
| Capacitance | 40nF | ±(5.0%+30d) | ±(5.0%+30d) |
| 400nF/4μF/40μF | ±(3.5%+8d) | ±(3.5%+8d) |
| 100μF | ±(5.0%+10d) | ±(5.0%+10d) |
| Frequency | 5.120Hz/51.20Hz/512.0Hz/5.120kHz/51.20kHz/512.0kHz/100.0kHz | ±(0.5%+4d) | ±(0.5%+4d) |
| Special Function | VICTOR 6052 | VICTOR 6050 |
| Diode test | √ | √ |
| Continuity Buzzer | √ | √ |
| Low battery indication | √ | √ |
| Hold | Data Hold | Data Hold |
| Auto power off | √ | √ |
| Relative Value Measurement | √ | √ |
| Sampling rate | 3 times/s | 3 times/s |
| AC frequency response | 40-400Hz | 40-400Hz |
| Operation way | Manual range | Manual range |
| Max. Display | 3999 | 3999 |
| Clamp Size | 55mm | 55mm |
| Battery | 3V(1.5V*2) | 3V(1.5V*2) |
General Characters
| Product Color | Case: black ; Holster color: orange |
| Standard Accessories | Test leads , battery ,instruction manual |
| Standard inner packing | Color box |
