VICTOR 925 Digital Multimeter with Lithium Battery and Full Screen 9999 LCD Display

Name: VICTOR 925 Digital Multimeter with Lithium Battery and Full Screen 9999 LCD Display
Brand: VICTOR
Price: 15 USD

Quality VICTOR 925 Digital Multimeter with Lithium Battery and Full Screen 9999 LCD Display wholesale

Brand Name : VICTOR

Model Number : 925

Certification : CE ROHS

Place of Origin : CHINA

MOQ : 100pcs;

Price : USD15/pc;above 1000pcs negotiable

Payment Terms : T/T

Supply Ability : 1000pcs

Delivery Time : 7 to 30 days

Packaging Details : color box：30pcs/carton,carton size:39.5*33*46.2cm. G.W.:17KG/carton

Weight : Approx. 133 g (including batteries)

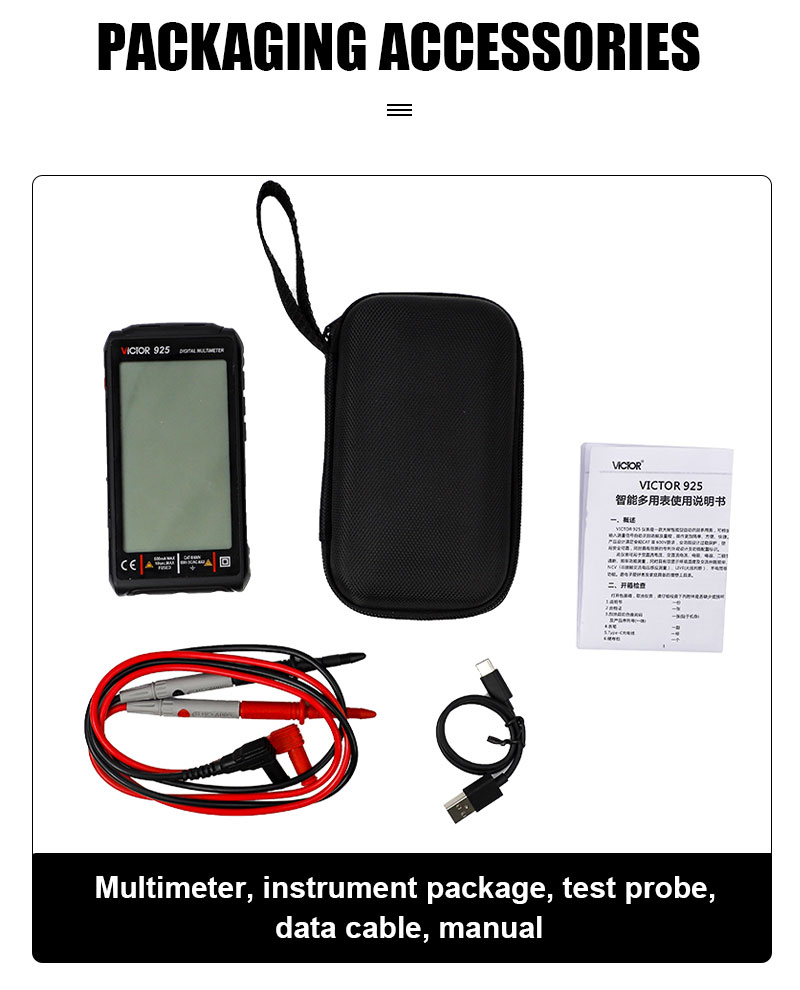

Product Packing : Color box

Power : Rechargable lithrum battery

Data Hold : Yes

Auto Range : Yes

Display : 9999 Counts

Measurement Range : DC Voltage: 0-600V, AC Voltage: 0-600V, DC Current: 0-10A, AC Current: 0-10A, Resistance: 0-60MΩ, Capacitance: 0-60mF, Frequency: 0-10MHz, Temperature: -40℃~1000℃

Color : Black

Warranty : 1 year

Size : 137 mm x70 mm x20mm

Auto Power Off : Yes

Input Impedance : 10MΩ

Ncv : yes

Operation Way : Auto range

Continuity Buzzer : Yes

Contact Now

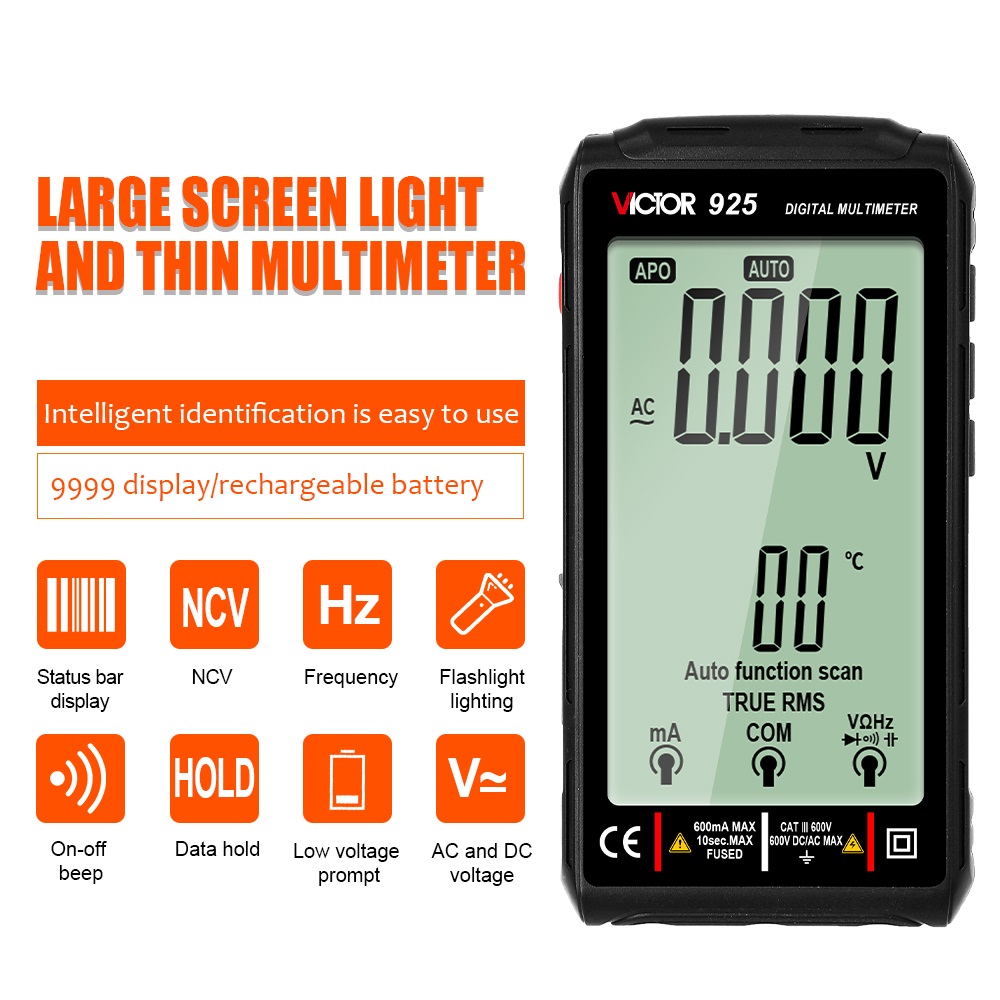

VICTOR 925 Digital Multmeter with full screen display Smart Auto range multimeter lithrum battery multimeter

VICTOR 925 Digital Multimeter full screen 9999 lcd display with NCV Diode DC AC 600vlithlum battery Multimeter digital

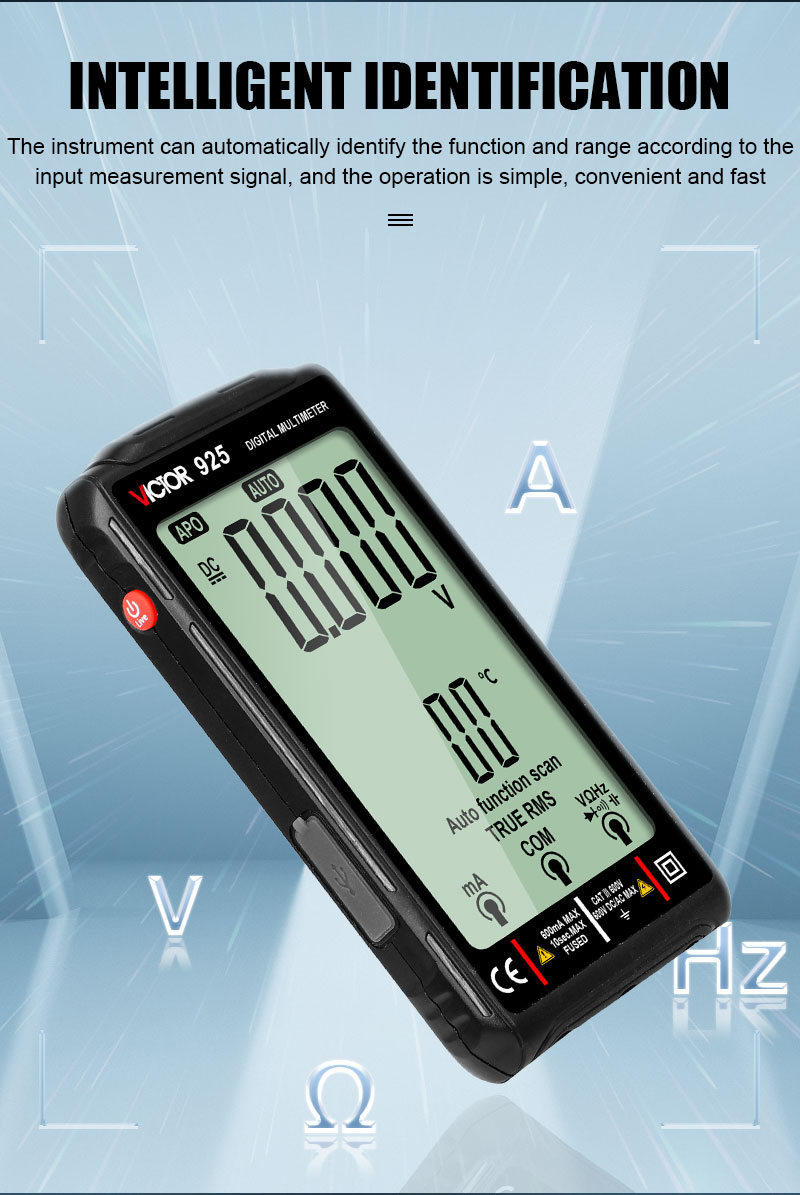

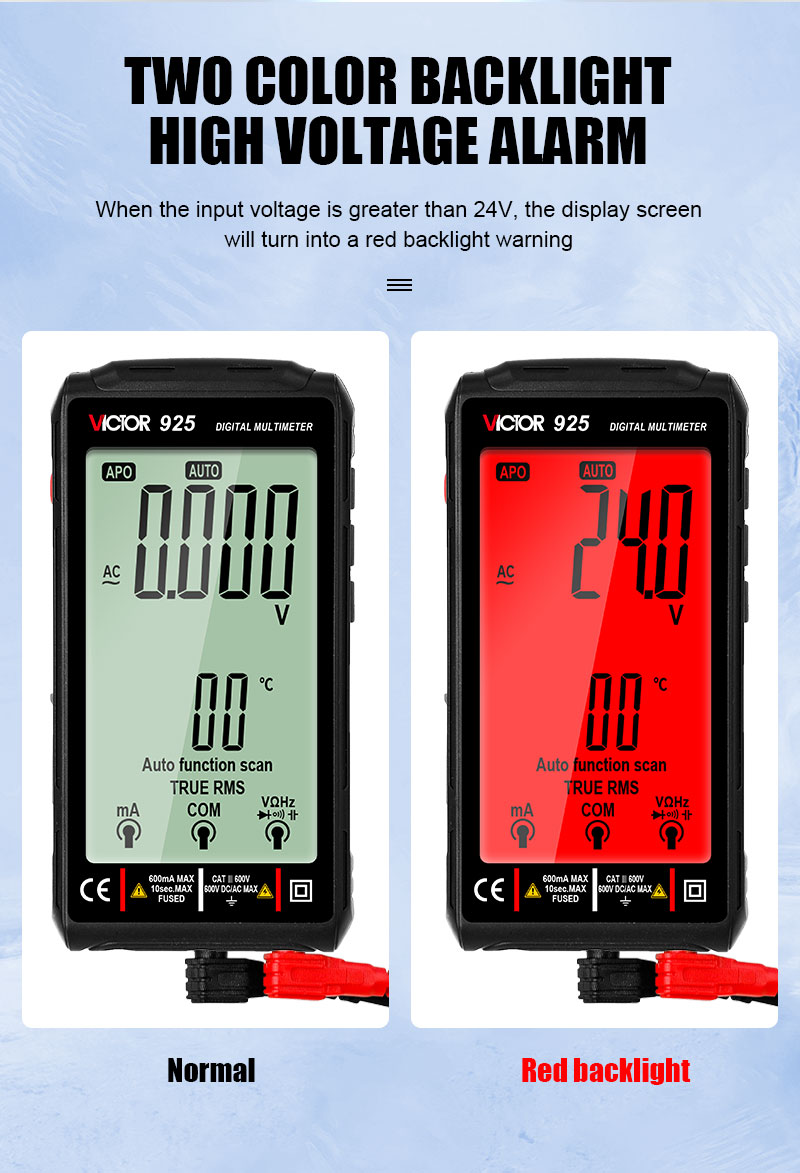

It is an large-screen intelligent multi-purpose meters that can automatically identify functions and ranges according to the input measurement signals, making the operation simpler, more convenient and faster.

The product is designed to meet the requirements of safety regulations CAT III 600V, with full functional design overload protection, safe and reliable operation, and innovative patent appearance design and functional configuration logo.

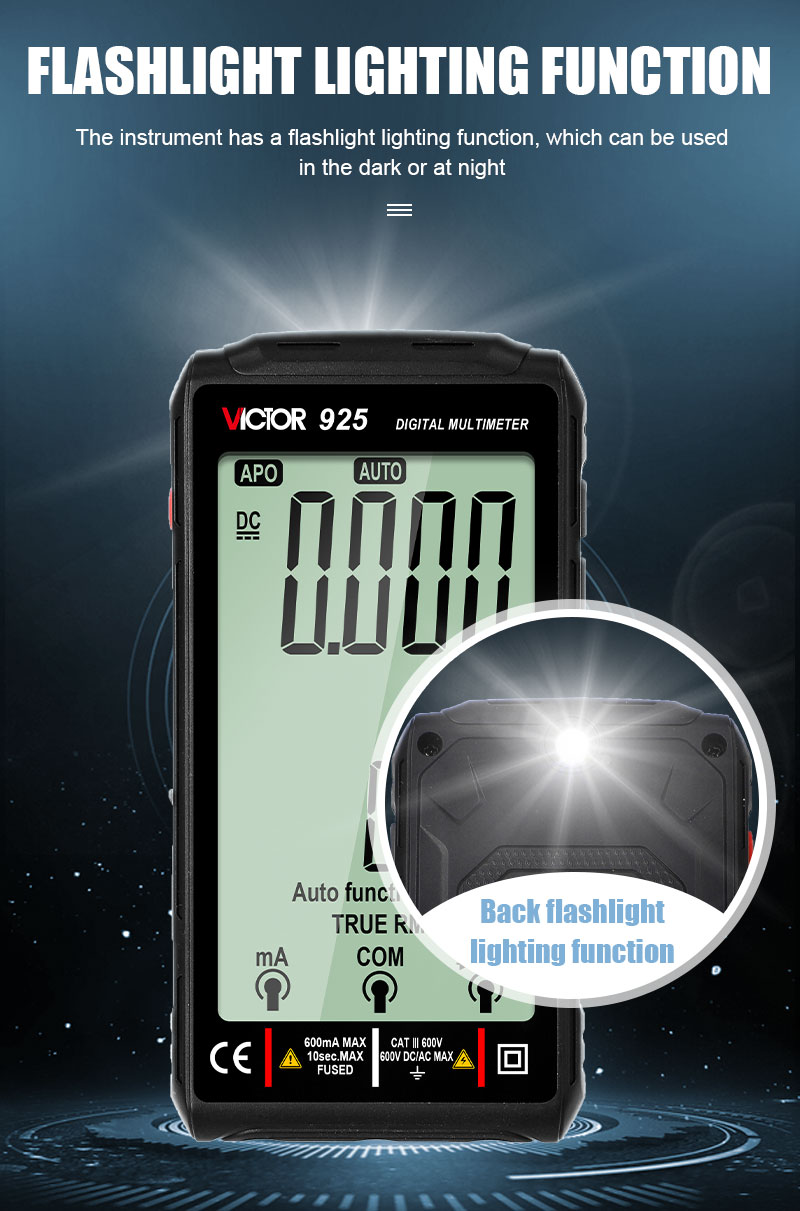

It can be used to measure DCV, ACV, DCA, ACA, resistance and continuity test, NCV (non-contact ACV induction measurement), Live (live line judgment) and torch functions. It is the ideal entry level tools of the electronic hobbyists and home users.

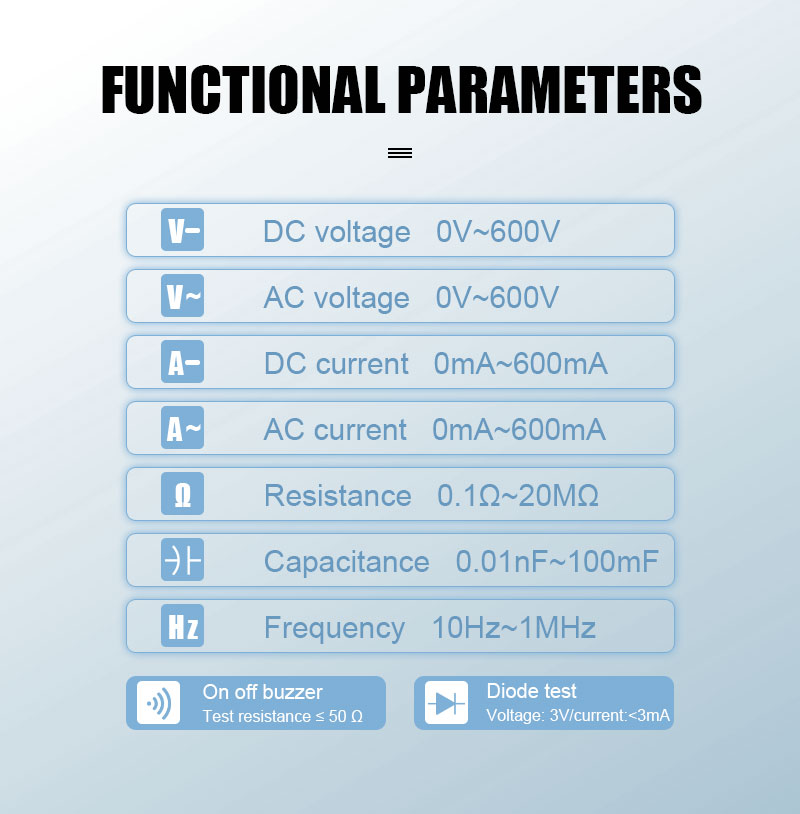

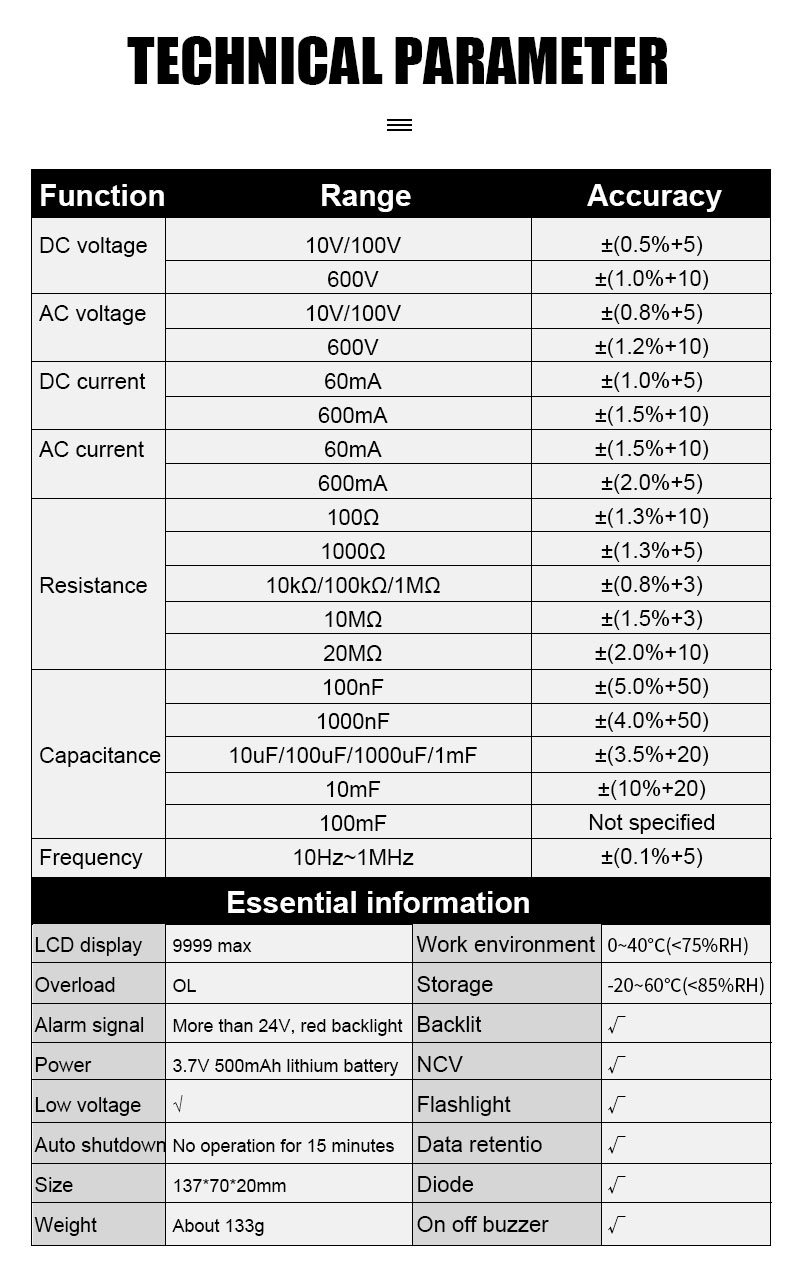

Model	VICTOR 925
Basic Function	Range	Accuracy
DC Voltage	10V/100V	士(0.5%+3)
DC Voltage	600V	土(1.0%+10)
AC Voltage	10V/100V	士(0.8%+5)
AC Voltage	600V	土(1.2%+10)
DC Current	60mA	土(1.0%+5)
DC Current	600mA	土(1.5%+10)
AC Current	60mA	土(1.5%+10)
AC Current	600mA	土(2.0%+ 5)
Capacitance	100nF/1000nF	土(4.0%+20)
	10uF/100uF/1000uF/1mF	土(3.5%+20)
	10mF/100mF	土(10%±10)
Frequency	10Hz~1MHz	土(0.1%±5)
Resistance	1000Ω	±(1.3%+5)
	10kΩ/100kΩ/1MΩ	土(0.8%±3)
	10MΩ	土(1.5%+3)
	20MΩ	土(2.0%±10)

Special Function
High battery indication	√
Auto power off	√
Diode	√
Display	LCD displaying
Over range indication	MSD displays “OL”

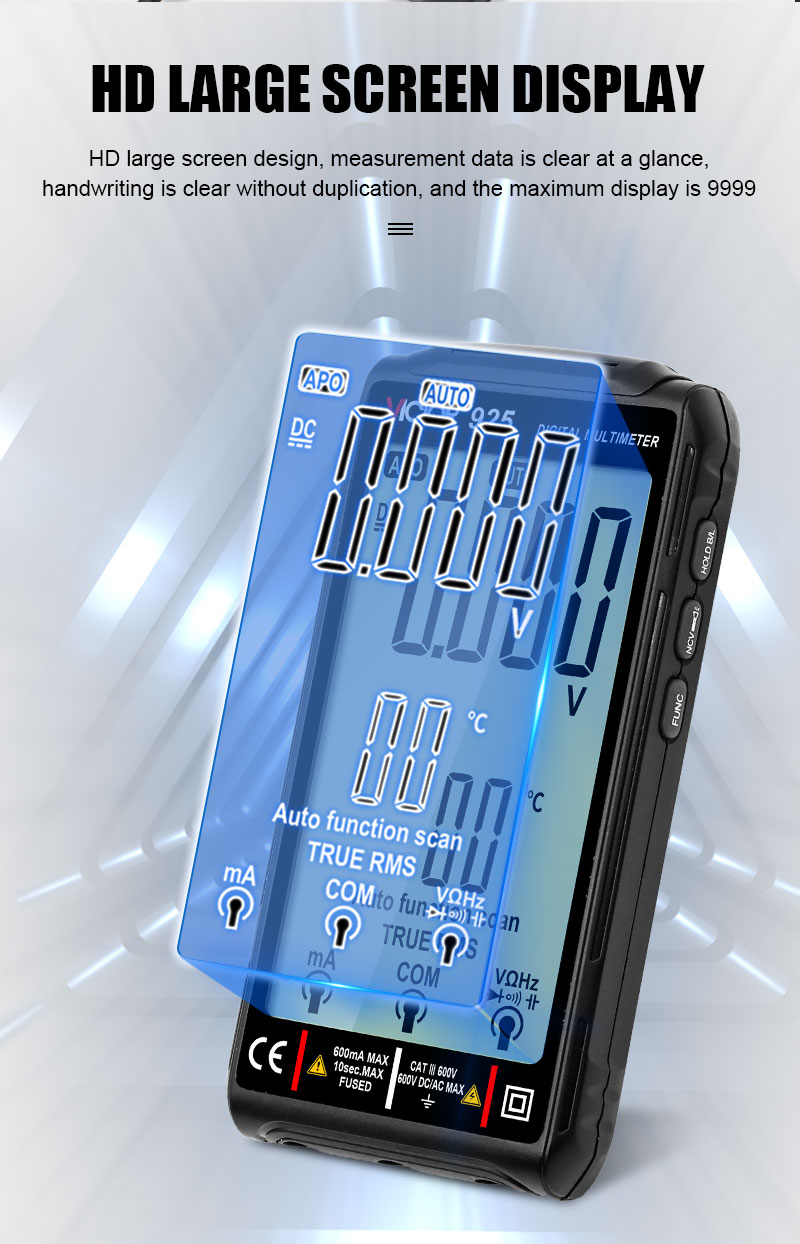

Max. Display	9999

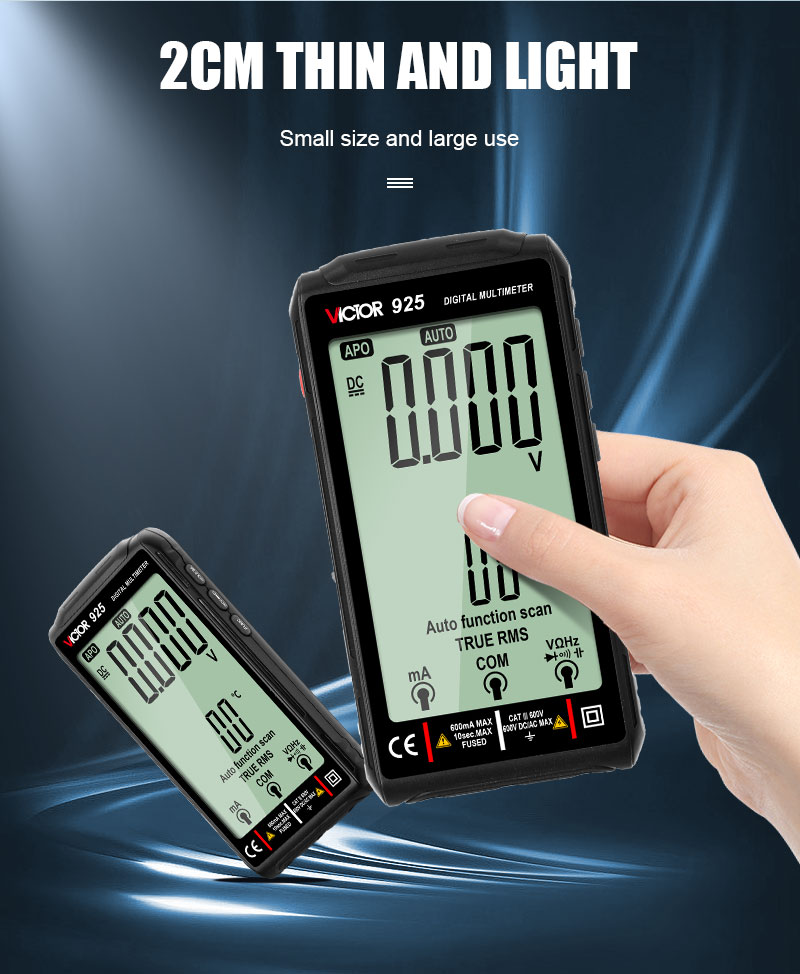

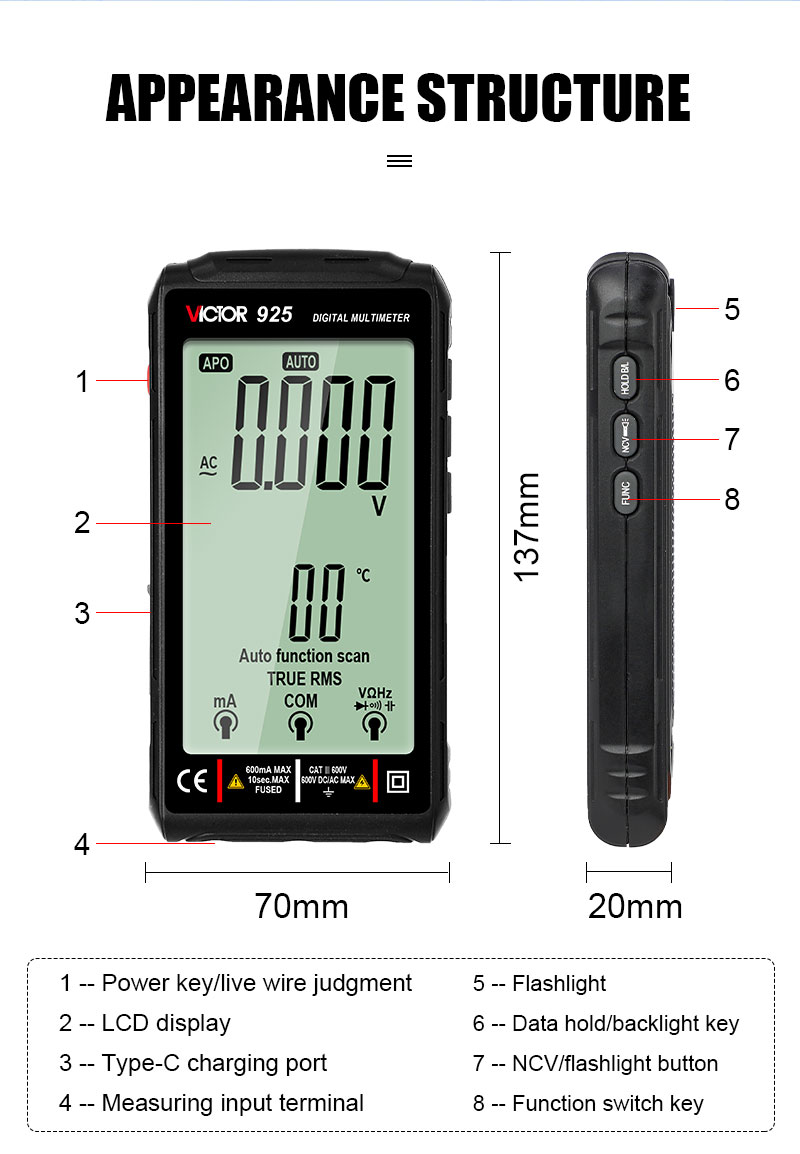

Size	137×70×20 mm
Weight	approx.133g
Power	built-in 3.7V 500mA lithium battery
Operating environment	Temperature (0 - 40)℃,humidity<75%RH
Storage environment	Temperature (-20 - 60)℃,humidity<85%RH
